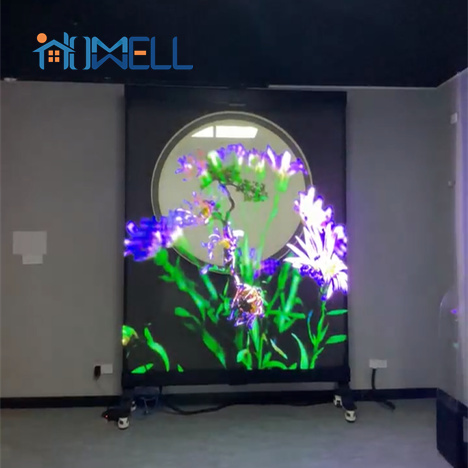

transparent led display factory

Product Attributes :

Brand Name: HOMEWELL

Screen Material: Tempered Glass

Pixel Pitch:5.5*11/11*11/11*22/22*22

LED chip:SMD1812

Screen Size:support customization

Specification:Digital Poster, Video Wall

Brightness:5000nits

Life span:100000 Hrs

Waterproof:IP65 Level

Warranty:1 Years

Product Description

Airport lobby solution

Flight information display: It can display flight information in real time, including boarding gate, flight status, seat number, etc., to provide passengers with more accurate and convenient information services.

Advertisement display: The airport has a large passenger flow, which can be used as a platform for advertising display, displaying various advertising content, such as brand advertising, product advertising, etc., to increase passengers' attention and brand awareness.

Guide service: It can provide guide service to show passengers the layout of the airport, the distribution of facilities and other information, so that passengers can quickly find their destination.

Product
Model

SSD-JMP4-8

SSD-JMP6

SSD-JMP10

Point spacing (mm)

8*4

6*6

10*10

Module resolution (px)

30×300

40×200

Point density (points/m²)

31250

27777

24×120

Screen visual transparency

87%

90%

10000

Brightness (cd/m²)

2000~4000 Adjustable

Module size (width × height × thickness mm)

1200*240*2

Module weight (Kg/module)

1.1

Peak power (W/m²)

600

Average power (W/m²)

200

Operating environment temperature/humidity

-20℃~60℃/10％～90％RH，No condensation

Pixel composition

1R1G1B

Horizontal viewing angle / vertical viewing angle

120°/110°

Flatness

SPECIFICATION
Product		LED Transparent Chip Display
Type		P6
Product Model		P6 Indoor Full Color Display
( 1)Pixel point parameter		To achieve the best white balance effect in color matching,the color-matching ratio ofvarious color brightness is required to be R:G:B/3:6:1.
1	LED lamp type		1 red,1 green,1 blue (chip)
2	Dot pitch		Horizontal 6.25mm,Vertical 6mm
3	Pixel composition		1R1G1B
(2)Module technical parameters
1	Module resolution (width x height)		160 pixels ×40 pixels
3	Flatness between modules		≤0.1mm
4	Module size (width ×height x thickness)		1000mm(customizable)240mm2mm
5	Module weight		0.3Kg/Module
6	Installation method		Directly adhered to glass /Can be clamped inside tempered glass /Inner arc installation /Supports size cutting and bending
(3)Screen technical parameters
1	Point density		26560 point/m²
2	Brightness	1000cd~2000cd/m²Adjustable	Brightness	1000cd~2000cd/m²Adjustable
3	Horizontal /Verticalviewing angle	140°/140°	Horizontal /Verticalviewing angle	140°/140°
4	Flatness	≥98%	Flatness	≥98%
5	Chromaticity uniformity	±0.003 Cx,Cy Within	Chromaticity uniformity	±0.003 Cx,Cy Within
6	Maximum contrast ratio	4000:1	Maximum contrast ratio	4000:1
7	Protection level	IP43	Protection level	IP43
(4)System controlparameters
1	Signal color processing bits	Each of red,green,andblue ≥16bit	Signal color processing bits	Each of red,green,andblue ≥16bit
2	Driving mode	Constant current dynamic	Driving mode	Constant current dynamic
3	Frame change frequency	60 frames /second.Highbrush supports 3D:120 frames /second	Frame change frequency	60 frames /second.Highbrush supports 3D:120 frames /second
4	Refresh rate	≥3840Hz	Refresh rate	≥3840Hz
6	Screen color temperature	2000K~9500K Adjustable	Screen color temperature	2000K~9500K Adjustable
7	Brightness adjustment	Manual/Automatic /Programmed	Brightness adjustment	Manual/Automatic /Programmed
8	Pixel correction	Equipped with point-by-point correction of brightnessand chromaticity	Pixel correction	Equipped with point-by-point correction of brightnessand chromaticity
9	Control method	Synchronous and asynchronous control (Nova / Colorlight)	Control method	Synchronous and asynchronous control (Nova / Colorlight)
10	Control distance	Cat 5e twisted-pair network cable.Fiber optic transmission is used when exceeding 100 meters	Control distance	Cat 5e twisted-pair network cable.Fiber optic transmission is used when exceeding 100 meters
11	Software interface	Windows	Software interface	Windows
12	Signal input	HDMI、DVI	Signal input	HDMI、DVI
(5)Screenoperation parameters
1	Operating voltage	AC:110V~240V、50~60Hz	Operating voltage	AC:110V~240V、50~60Hz
2	Peak power	≤180W/m²	Peak power	≤180W/m²
3	Average power	50W/m²~60W/m²	Average power	50W/m²~60W/m²
4	Continuous working time	≥7 x 24hrs,supports continuous and uninterrupted display	Continuous working time	≥7 x 24hrs,supports continuous and uninterrupted display
5	Average trouble-free working time	≥10000hrs	Average trouble-free working time	≥10000hrs
6	LED chip life	100,000 hours	LED chip life	100,000 hours
7	Discrete out-of-control points	≤0.001,0 at factory	Discrete out-of-control points	≤0.001,0 at factory
8	Continuous out-of-controlpoints	0	Continuous out-of-controlpoints	0
9	Blind spot rate	≤0.001,0 at factory	Blind spot rate	≤0.001,0 at factory
10	Screentemperature rise(during operation)	s3 degree	Screentemperature rise(during operation)	s3 degree
11	Operating environment temperature	-10℃~60℃	Operating environment temperature	-10℃~60℃
12	Operating environment humidity	10%-90%RH,no condensation	Operating environment humidity	10%-90%RH,no condensation

≥98%

Highest contrast

4000:01:00

Protection level

IP43

Refresh rate (Hz)

≥3840

LED Lifetime

≥10万小时
