led film for glass
Product Attributes :
Brand Name: HOMEWELL
Screen Material: Tempered Glass
Pixel Pitch:5.5*11/11*11/11*22/22*22
LED chip:SMD1812
Screen Size:support customization
Specification:Digital Poster, Video Wall
Brightness:5000nits
Life span:100000 Hrs
Waterproof:IP65 Level
Warranty:1 Years
Product Description

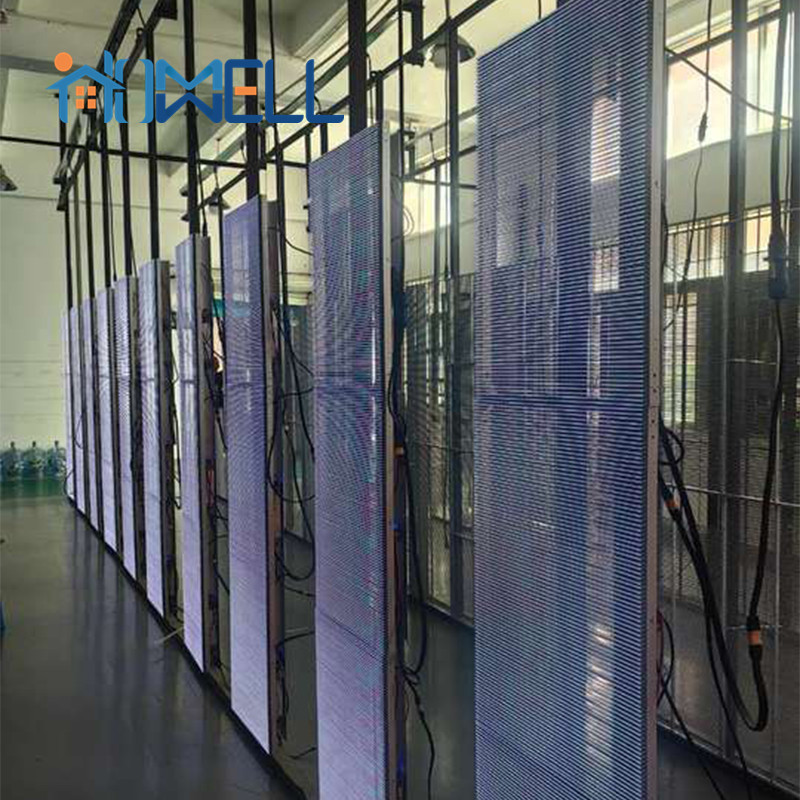

led film for glass
series outdoor screen is a kind of outdoor
waterproof and transparent LED display screen.In the
way of patch, modular design, with high brightness,
waterproof, flame retardant, wind resistance Anti-UV,
high-temperature and high-humidity resistance, etc.,
the process is mature and stable, can be hung, and can
be freely DIY combined into various shapes, which
solves the problem of no protection for traditional
transparent screens.This series widely used in exterior
walls of buildings, shopping malls, major festivals,
cultural tourism night tours etc.
|
model
|
W5
|
W10
|
|
pixel structure
|
2727RGB
|
2727RGB
|
|
pixelpitch（mm）
|
5.2*10.4（W/H）
|
10.42*10.4（W/H）
|
|
Module resolution（W*H）
|
192*48
|
96*48
|
|
Module size(mm)
|
1000*500*65mm
|
1000*500*65mm
|
|
Module weight(Kg)
|
10
|
10
|
|
unit area(㎡)
|
0.5
|
0.5
|
|
pixel density(Dot/㎡)
|
18432
|
9216
|
|
best line of sight(m)
|
5-150
|
10-150
|
|
Transparency(%)
|
<50%
|
<50%
|
